import pymc as pm
import numpy as np
import arviz as az
import pandas as pd
import pytensor.tensor.subtensor as st
from itertools import combinations

9. Simvastatin*#

This one is about factorial designs (2-way ANOVA) with sum-to-zero and corner constraints.

Adapted from Unit 7: simvastatin.odc.

Data can be found here.

In a quantitative physiology lab II at Georgia Tech, students were asked to find a therapeutic model to test on MC3T3-E1 cell line to enhance osteoblastic growth. The students found a drug called Simvastatin, a cholesterol lowering drug to test on these cells. Using a control and three different concentrations, \(10^{-9}\), \(10^{-8}\) and \(10^{-7}\) M, cells were treated with the drug. These cells were plated on four, 24 well plates with each well plate having a different treatment. To test for osteoblastic differentiation an assay, pNPP, was used to test for alkaline phosphatase activity. The higher the alkaline phosphatase activity the better the cells are differentiating, and become more bone like. This assay was performed 6 times total within 11 days. Each time the assay was performed, four wells from each plate were used.

Note

We can now implement the sum-to-zero (STZ) constraints in PyMC with the pm.ZeroSumNormal class. Previously, we were doing something similar to the corner constraint approach, below, for STZ constraints.

data = pd.read_csv("../data/simvastatin_data.tsv", sep="\t")
data.head(3)
apa conc time
0 0.062 1 1
1 0.517 1 1
2 0.261 1 1
# set up alternate coordinates, the ID3 or clusters column
conc_idx, conc = pd.factorize(data["conc"])
time_idx, time = pd.factorize(data["time"])
coords = {"conc": conc, "time": time, "id": data.index}

conc_idx, time_idx, coords
(array([0, 0, 0, 0, 1, 1, 1, 1, 2, 2, 2, 2, 3, 3, 3, 3, 0, 0, 0, 0, 1, 1,
        1, 1, 2, 2, 2, 2, 3, 3, 3, 3, 0, 0, 0, 0, 1, 1, 1, 1, 2, 2, 2, 2,
        3, 3, 3, 3, 0, 0, 0, 0, 1, 1, 1, 1, 2, 2, 2, 2, 3, 3, 3, 3, 0, 0,
        0, 0, 1, 1, 1, 1, 2, 2, 2, 2, 3, 3, 3, 3, 0, 0, 0, 0, 1, 1, 1, 1,
        2, 2, 2, 2, 3, 3, 3, 3]),
 array([0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 1, 1, 1, 1, 1,
        1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2,
        2, 2, 2, 2, 3, 3, 3, 3, 3, 3, 3, 3, 3, 3, 3, 3, 3, 3, 3, 3, 4, 4,
        4, 4, 4, 4, 4, 4, 4, 4, 4, 4, 4, 4, 4, 4, 5, 5, 5, 5, 5, 5, 5, 5,
        5, 5, 5, 5, 5, 5, 5, 5]),
 {'conc': Index([1, 2, 3, 4], dtype='int64'),
  'time': Index([1, 2, 3, 4, 5, 6], dtype='int64'),
  'id': RangeIndex(start=0, stop=96, step=1)})

Model 1 with sum-to-zero constraints#

def contrasts(var, index):
    """Calculate differences between levels with names like "alpha[low] - alpha[high]".

    var: pytensor.tensor.var.TensorVariable
    index: pandas.Index
    """
    name = var.name
    for i, j in combinations(range(index.size), 2):
        a, b = index[i], index[j]
        pm.Deterministic(f"{name}[{a}] - {name}[{b}]", var[i] - var[j])


with pm.Model(coords=coords) as m:
    apa_data = pm.Data("apa_data", data.apa.to_numpy())
    time_idx_data = pm.Data("time_idx_data", time_idx, dims="id")
    conc_idx_data = pm.Data("conc_idx_data", conc_idx, dims="id")

    mu0 = pm.Normal("mu0", 0, sigma=10)
    alpha = pm.ZeroSumNormal("alpha", sigma=10, dims="conc")
    beta = pm.ZeroSumNormal("beta", sigma=10, dims="time")
    alphabeta = pm.ZeroSumNormal(
        "alphabeta", sigma=10, dims=("conc", "time"), n_zerosum_axes=2
    )

    sigma = pm.Exponential("sigma", 0.05)

    mu = (
        mu0
        + alpha[conc_idx_data]
        + beta[time_idx_data]
        + alphabeta[conc_idx_data, time_idx_data]
    )
    pm.Normal("apa", mu, sigma=sigma, observed=apa_data, dims="id")

    # calculate differences between levels (except interaction term)
    contrasts(alpha, coords["conc"])
    contrasts(beta, coords["time"])

    trace = pm.sample(2000)
Hide code cell output
Initializing NUTS using jitter+adapt_diag...
Multiprocess sampling (4 chains in 4 jobs)
NUTS: [mu0, alpha, beta, alphabeta, sigma]

Sampling 4 chains for 1_000 tune and 2_000 draw iterations (4_000 + 8_000 draws total) took 2 seconds.
az.summary(trace)
mean sd hdi_3% hdi_97% mcse_mean mcse_sd ess_bulk ess_tail r_hat
mu0 0.239 0.025 0.192 0.284 0.000 0.000 16025.0 6047.0 1.0
alpha[1] 0.050 0.043 -0.029 0.130 0.000 0.000 16137.0 5345.0 1.0
alpha[2] 0.068 0.044 -0.015 0.151 0.000 0.000 17739.0 6112.0 1.0
alpha[3] -0.075 0.043 -0.155 0.008 0.000 0.000 15878.0 5571.0 1.0
alpha[4] -0.042 0.043 -0.122 0.040 0.000 0.000 16277.0 6767.0 1.0
beta[1] 0.046 0.057 -0.064 0.151 0.000 0.001 17607.0 5500.0 1.0
beta[2] -0.150 0.056 -0.255 -0.043 0.000 0.000 16229.0 5287.0 1.0
beta[3] -0.017 0.057 -0.124 0.089 0.000 0.001 15903.0 5838.0 1.0
beta[4] 0.231 0.056 0.127 0.338 0.000 0.000 20296.0 6065.0 1.0
beta[5] -0.023 0.056 -0.130 0.080 0.000 0.001 17988.0 5377.0 1.0
beta[6] -0.086 0.056 -0.191 0.020 0.000 0.000 16977.0 6607.0 1.0
alphabeta[1, 1] -0.087 0.099 -0.282 0.089 0.001 0.001 18737.0 5888.0 1.0
alphabeta[1, 2] -0.081 0.099 -0.279 0.095 0.001 0.001 17551.0 5878.0 1.0
alphabeta[1, 3] -0.210 0.096 -0.390 -0.026 0.001 0.001 19321.0 5910.0 1.0
alphabeta[1, 4] 0.501 0.098 0.321 0.690 0.001 0.001 16675.0 5458.0 1.0
alphabeta[1, 5] -0.021 0.098 -0.202 0.166 0.001 0.001 18033.0 6209.0 1.0
alphabeta[1, 6] -0.102 0.095 -0.284 0.076 0.001 0.001 17272.0 5672.0 1.0
alphabeta[2, 1] 0.150 0.097 -0.041 0.324 0.001 0.001 18286.0 6128.0 1.0
alphabeta[2, 2] -0.100 0.099 -0.277 0.098 0.001 0.001 19841.0 5447.0 1.0
alphabeta[2, 3] 0.354 0.099 0.171 0.542 0.001 0.001 18317.0 6005.0 1.0
alphabeta[2, 4] -0.176 0.099 -0.359 0.012 0.001 0.001 15986.0 6157.0 1.0
alphabeta[2, 5] -0.186 0.097 -0.371 -0.007 0.001 0.001 18866.0 5949.0 1.0
alphabeta[2, 6] -0.041 0.098 -0.223 0.147 0.001 0.001 16520.0 5735.0 1.0
alphabeta[3, 1] -0.044 0.098 -0.221 0.147 0.001 0.001 15690.0 6344.0 1.0
alphabeta[3, 2] 0.056 0.097 -0.135 0.230 0.001 0.001 16679.0 5610.0 1.0
alphabeta[3, 3] -0.045 0.097 -0.231 0.135 0.001 0.001 16829.0 6033.0 1.0
alphabeta[3, 4] -0.139 0.100 -0.321 0.052 0.001 0.001 17108.0 5830.0 1.0
alphabeta[3, 5] 0.159 0.098 -0.032 0.342 0.001 0.001 17604.0 6188.0 1.0
alphabeta[3, 6] 0.013 0.097 -0.167 0.195 0.001 0.001 18881.0 6015.0 1.0
alphabeta[4, 1] -0.020 0.097 -0.198 0.164 0.001 0.001 16763.0 6193.0 1.0
alphabeta[4, 2] 0.125 0.098 -0.056 0.310 0.001 0.001 19270.0 6187.0 1.0
alphabeta[4, 3] -0.099 0.098 -0.278 0.086 0.001 0.001 18312.0 5739.0 1.0
alphabeta[4, 4] -0.186 0.096 -0.370 -0.009 0.001 0.001 18164.0 5899.0 1.0
alphabeta[4, 5] 0.048 0.098 -0.137 0.231 0.001 0.001 16290.0 5796.0 1.0
alphabeta[4, 6] 0.131 0.097 -0.046 0.317 0.001 0.001 19710.0 5744.0 1.0
sigma 0.245 0.021 0.206 0.285 0.000 0.000 7177.0 6309.0 1.0
alpha[1] - alpha[2] -0.019 0.071 -0.153 0.113 0.001 0.001 17208.0 6121.0 1.0
alpha[1] - alpha[3] 0.125 0.070 -0.006 0.255 0.001 0.000 16185.0 5960.0 1.0
alpha[1] - alpha[4] 0.092 0.070 -0.035 0.229 0.001 0.001 15963.0 5886.0 1.0
alpha[2] - alpha[3] 0.143 0.071 0.010 0.277 0.001 0.000 16554.0 5525.0 1.0
alpha[2] - alpha[4] 0.111 0.071 -0.022 0.246 0.001 0.000 17508.0 6694.0 1.0
alpha[3] - alpha[4] -0.033 0.071 -0.165 0.102 0.001 0.001 16158.0 6125.0 1.0
beta[1] - beta[2] 0.196 0.089 0.039 0.371 0.001 0.001 15356.0 5501.0 1.0
beta[1] - beta[3] 0.064 0.090 -0.101 0.235 0.001 0.001 17456.0 6107.0 1.0
beta[1] - beta[4] -0.184 0.087 -0.344 -0.018 0.001 0.001 18429.0 5783.0 1.0
beta[1] - beta[5] 0.069 0.086 -0.097 0.227 0.001 0.001 18081.0 5315.0 1.0
beta[1] - beta[6] 0.132 0.088 -0.034 0.298 0.001 0.001 17547.0 6326.0 1.0
beta[2] - beta[3] -0.133 0.087 -0.295 0.031 0.001 0.001 16051.0 6060.0 1.0
beta[2] - beta[4] -0.381 0.088 -0.543 -0.214 0.001 0.000 20287.0 5947.0 1.0
beta[2] - beta[5] -0.128 0.087 -0.294 0.030 0.001 0.001 17175.0 5327.0 1.0
beta[2] - beta[6] -0.064 0.086 -0.227 0.093 0.001 0.001 16477.0 5940.0 1.0
beta[3] - beta[4] -0.248 0.087 -0.408 -0.087 0.001 0.001 17316.0 6573.0 1.0
beta[3] - beta[5] 0.005 0.088 -0.160 0.173 0.001 0.001 16760.0 6046.0 1.0
beta[3] - beta[6] 0.069 0.087 -0.099 0.229 0.001 0.001 15885.0 5729.0 1.0
beta[4] - beta[5] 0.253 0.087 0.088 0.415 0.001 0.001 19013.0 5946.0 1.0
beta[4] - beta[6] 0.317 0.088 0.148 0.480 0.001 0.001 18063.0 5965.0 1.0
beta[5] - beta[6] 0.063 0.087 -0.092 0.231 0.001 0.001 17985.0 5835.0 1.0

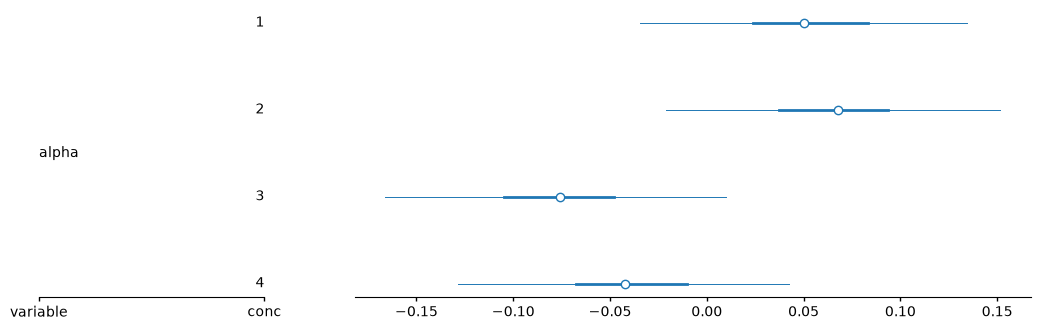

az.plot_forest(trace, var_names=["alpha"], combined=True)
array([<Axes: title={'center': '94.0% HDI'}>], dtype=object)
../_images/61a569bd29067a97a25ccc9199976d18220e3776c9ce93e502fc73298c64e4c5.png

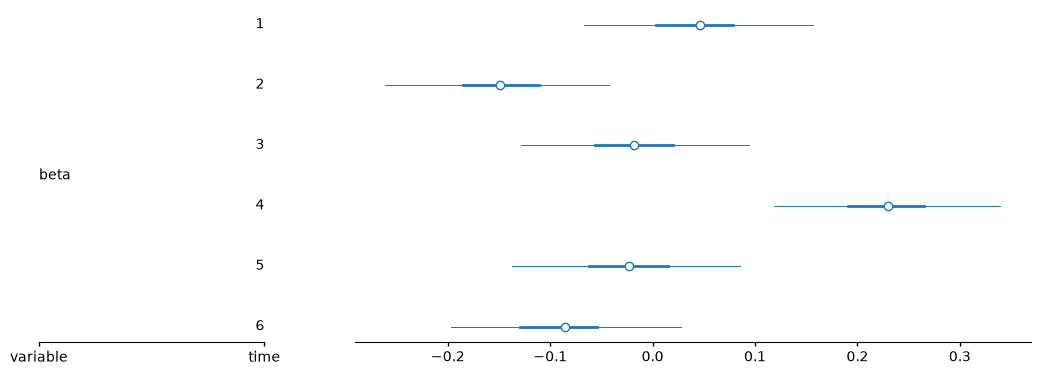

az.plot_forest(trace, var_names=["beta"], combined=True)
array([<Axes: title={'center': '94.0% HDI'}>], dtype=object)
../_images/3271b5461d5a094dd2dc9d71f5c236137f5e11349690aaea190bac3ef4f97846.png

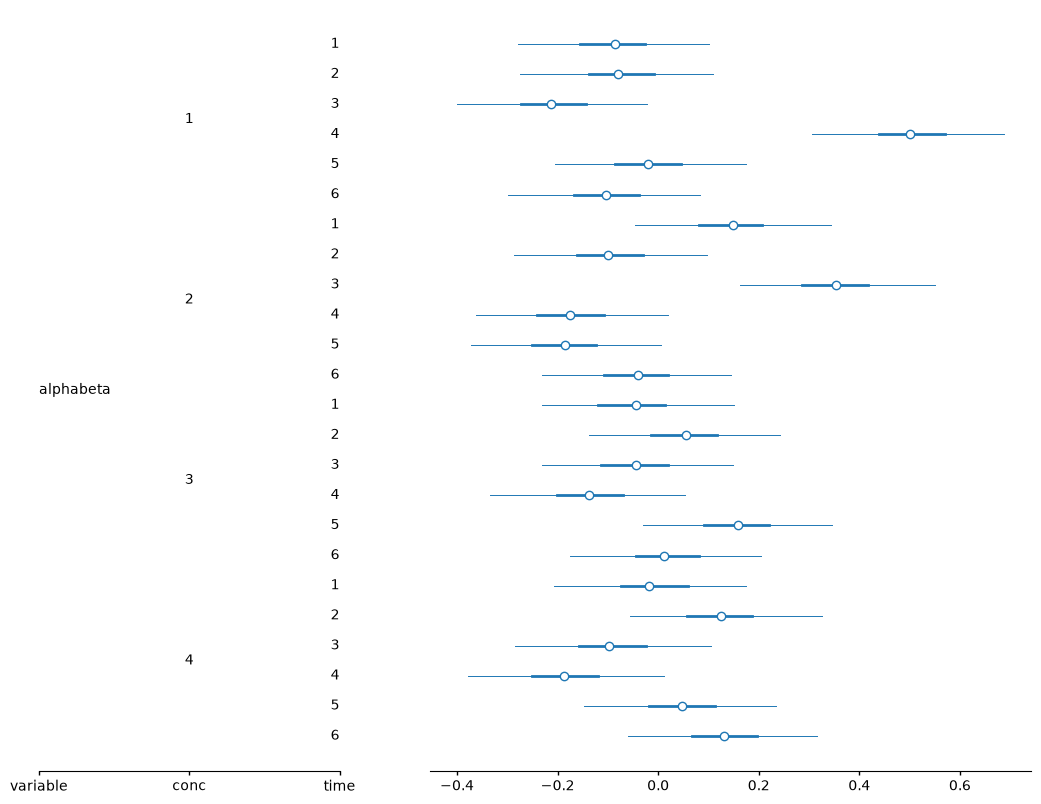

az.plot_forest(trace, var_names=["alphabeta"], combined=True)
array([<Axes: title={'center': '94.0% HDI'}>], dtype=object)
../_images/f456ea6ef0cbd1290d270b7a5fd91dc79c93235380eddc9df8053daf6b4194d8.png

Model 2 with corner constraints#

with pm.Model(coords=coords) as m:
    apa_data = pm.Data("apa_data", data.apa.to_numpy())
    time_idx_data = pm.Data("time_idx_data", time_idx, dims="id")
    conc_idx_data = pm.Data("conc_idx_data", conc_idx, dims="id")

    mu0 = pm.Normal("mu0", 0, tau=0.0001)
    _alpha = pm.Normal("_alpha", 0, tau=0.0001, dims="conc")
    _beta = pm.Normal("_beta", 0, tau=0.0001, dims="time")
    _alphabeta = pm.Normal("_alphabeta", 0, tau=0.0001, dims=("conc", "time"))
    tau = pm.Gamma("tau", 0.001, 0.001)
    sigma = pm.Deterministic("sigma", 1 / tau**0.5)

    # corner constraints: sets the first element of a dimension to zero
    alpha = pm.Deterministic("alpha", st.set_subtensor(_alpha[0], 0), dims="conc")
    beta = pm.Deterministic("beta", st.set_subtensor(_beta[0], 0), dims="time")
    _alphabeta = st.set_subtensor(_alphabeta[:, 0], 0)
    alphabeta = pm.Deterministic(
        "alphabeta",
        st.set_subtensor(_alphabeta[0, :], 0),
        dims=("conc", "time"),
    )

    mu = (
        mu0
        + alpha[conc_idx_data]
        + beta[time_idx_data]
        + alphabeta[conc_idx_data, time_idx_data]
    )
    pm.Normal("apa", mu, tau=tau, observed=apa_data, dims="id")

    contrasts(alpha, coords["conc"])
    contrasts(beta, coords["time"])

    trace = pm.sample(2000)
Hide code cell output
Initializing NUTS using jitter+adapt_diag...
Multiprocess sampling (4 chains in 4 jobs)
NUTS: [mu0, _alpha, _beta, _alphabeta, tau]

Sampling 4 chains for 1_000 tune and 2_000 draw iterations (4_000 + 8_000 draws total) took 7 seconds.
az.summary(trace, var_names="~_", filter_vars="like", kind="stats")
mean sd hdi_3% hdi_97%
mu0 0.246 0.125 0.009 0.478
tau 17.175 2.895 11.826 22.607
sigma 0.244 0.021 0.206 0.283
alpha[1] 0.000 0.000 0.000 0.000
alpha[2] 0.255 0.174 -0.066 0.587
alpha[3] -0.080 0.177 -0.419 0.250
alpha[4] -0.023 0.176 -0.359 0.304
beta[1] 0.000 0.000 0.000 0.000
beta[2] -0.188 0.174 -0.503 0.154
beta[3] -0.187 0.176 -0.508 0.156
beta[4] 0.773 0.177 0.436 1.095
beta[5] -0.001 0.177 -0.323 0.337
beta[6] -0.145 0.177 -0.473 0.191
alphabeta[1, 1] 0.000 0.000 0.000 0.000
alphabeta[1, 2] 0.000 0.000 0.000 0.000
alphabeta[1, 3] 0.000 0.000 0.000 0.000
alphabeta[1, 4] 0.000 0.000 0.000 0.000
alphabeta[1, 5] 0.000 0.000 0.000 0.000
alphabeta[1, 6] 0.000 0.000 0.000 0.000
alphabeta[2, 1] 0.000 0.000 0.000 0.000
alphabeta[2, 2] -0.258 0.246 -0.721 0.209
alphabeta[2, 3] 0.329 0.248 -0.169 0.779
alphabeta[2, 4] -0.909 0.245 -1.346 -0.428
alphabeta[2, 5] -0.400 0.249 -0.885 0.063
alphabeta[2, 6] -0.176 0.246 -0.659 0.269
alphabeta[3, 1] 0.000 0.000 0.000 0.000
alphabeta[3, 2] 0.091 0.247 -0.407 0.519
alphabeta[3, 3] 0.121 0.248 -0.358 0.569
alphabeta[3, 4] -0.684 0.249 -1.135 -0.212
alphabeta[3, 5] 0.133 0.249 -0.332 0.608
alphabeta[3, 6] 0.070 0.252 -0.411 0.541
alphabeta[4, 1] 0.000 0.000 0.000 0.000
alphabeta[4, 2] 0.137 0.247 -0.313 0.617
alphabeta[4, 3] 0.045 0.246 -0.407 0.506
alphabeta[4, 4] -0.757 0.248 -1.243 -0.303
alphabeta[4, 5] 0.000 0.250 -0.491 0.445
alphabeta[4, 6] 0.164 0.249 -0.287 0.650
alpha[1] - alpha[2] -0.255 0.174 -0.587 0.066
alpha[1] - alpha[3] 0.080 0.177 -0.250 0.419
alpha[1] - alpha[4] 0.023 0.176 -0.304 0.359
alpha[2] - alpha[3] 0.335 0.174 0.014 0.669
alpha[2] - alpha[4] 0.278 0.172 -0.046 0.603
alpha[3] - alpha[4] -0.057 0.175 -0.387 0.267
beta[1] - beta[2] 0.188 0.174 -0.154 0.503
beta[1] - beta[3] 0.187 0.176 -0.156 0.508
beta[1] - beta[4] -0.773 0.177 -1.095 -0.436
beta[1] - beta[5] 0.001 0.177 -0.337 0.323
beta[1] - beta[6] 0.145 0.177 -0.191 0.473
beta[2] - beta[3] -0.001 0.174 -0.340 0.316
beta[2] - beta[4] -0.961 0.171 -1.293 -0.655
beta[2] - beta[5] -0.188 0.173 -0.529 0.127
beta[2] - beta[6] -0.044 0.173 -0.364 0.285
beta[3] - beta[4] -0.960 0.175 -1.284 -0.627
beta[3] - beta[5] -0.186 0.174 -0.511 0.140
beta[3] - beta[6] -0.042 0.176 -0.359 0.297
beta[4] - beta[5] 0.774 0.176 0.444 1.095
beta[4] - beta[6] 0.918 0.175 0.596 1.246
beta[5] - beta[6] 0.144 0.176 -0.184 0.474
%load_ext watermark
%watermark -n -u -v -iv
Last updated: Sun Mar 09 2025

Python implementation: CPython
Python version       : 3.12.7
IPython version      : 8.29.0

pymc    : 5.19.1
numpy   : 1.26.4
pandas  : 2.2.3
arviz   : 0.20.0
pytensor: 2.26.4
