Supplementary Exercises#

Warning

This page contains solutions! We recommend attempting each problem before peeking.

1. Beetles (Bliss Data)#

In his 1935 paper, Bliss provides a table showing a number of flour beetles killed after 5 hours of exposure to gaseous carbon disulfide at various concentrations. This data set has since been used extensively by statisticians to illustrate and compare models for binary and binomial data.

Use logistic regression on the following data:

x = np.array([1.6907, 1.7242, 1.7552, 1.7842, 1.8113, 1.8369, 1.8610, 1.8839])
n = np.array([59, 60, 62, 56, 63, 59, 62, 60])
y = np.array([6, 13, 18, 28, 52, 53, 61, 60])

Use one of the logit, probit, cloglog, loglog, or cauchyit link functions.

Solution

The logistic regression model will look like this:

\[\begin{align*} y_i | \boldsymbol{\beta}, \mathbf{x}_i &\sim \text{Binomial}(n_i, p_i) \\ g(p_i) &= \beta_0 + \sum_{j=1}^p \beta_j x_{ij} \\ \beta_0 &\sim \mathcal{N}(0, \sigma_0^2) \\ \beta_j &\sim \mathcal{N}(0, \sigma^2), \quad j = 0, 1, \ldots, p \end{align*}\]

where \(g(\cdot)\) is the link function.

For logit:

\[ \text{logit}(p) = \ln\left(\frac{p}{1-p}\right) \]

and its inverse \(g^{-1}(\cdot)\) is the logistic function:

\[ \text{logistic}(x) = \frac{1}{1 + e^{-x}} \]

For probit:

\[ \text{probit}(p) = \Phi^{-1}(p) \]

where \(\Phi\) is the cumulative distribution function of the standard normal distribution:

\[ \Phi(x) = \frac{1}{2}\left[1 + \text{erf}\left(\frac{x}{\sqrt{2}}\right)\right] \]

\(\text{erf}\) is the error function:

\[ \text{erf}(x) = \frac{2}{\sqrt{\pi}} \int_0^x e^{-t^2} \, dt \]

For cloglog (complementary log-log):

\[ \text{cloglog}(p) = \log(-\log(1 - p)) \]

and its inverse \(g^{-1}(\cdot)\) is:

\[ g^{-1}(x) = 1 - e^{-e^x} \]

For loglog:

\[ \text{loglog}(p) = -\log(-\log(p)) \]

and its inverse \(g^{-1}(\cdot)\) is:

\[ g^{-1}(x) = e^{-e^{-x}} \]

For cauchyit:

\[ \text{cauchyit}(p) = \tan\left(\pi \left(p - \frac{1}{2}\right)\right) \]

and its inverse \(g^{-1}(\cdot)\) is:

\[ g^{-1}(x) = \frac{1}{2} + \frac{1}{\pi} \arctan(x) \]
Hide code cell content
import pymc as pm
import arviz as az
import pandas as pd
import numpy as np
from pymc.math import exp, invlogit, invprobit, arctan


# Complementary log-log transformation
def invcloglog(x):
    return 1 - exp(-exp(x))


# Log-log transformation
def invloglog(x):
    return exp(-exp(-x))


# Cauchit transformation
def invcauchit(x):
    return 0.5 + (1 / np.pi) * arctan(x)


x = np.array([1.6907, 1.7242, 1.7552, 1.7842, 1.8113, 1.8369, 1.8610, 1.8839])
n = np.array([59, 60, 62, 56, 63, 59, 62, 60])
y = np.array([6, 13, 18, 28, 52, 53, 61, 60])

with pm.Model() as m:
    x_data = pm.MutableData("concentration", x)

    beta0 = pm.Normal("beta0", 0, 100)
    beta1 = pm.Normal("beta1", 0, 100)

    # Uncomment desired link function
    p = invlogit(beta0 + beta1 * x_data)  # logit
    # p = invprobit(beta0 + beta1 * x_data)  # probit
    # p = invcloglog(beta0 + beta1 * x_data)  # cloglog
    # p = invloglog(beta0 + beta1 * x_data)  # loglog
    # p = invcauchit(beta0 + beta1 * x_data)  # cauchyit

    pm.Binomial("likelihood", n=n, p=p, observed=y)

    trace = pm.sample(5000)

az.summary(trace, kind="stats")

Auto-assigning NUTS sampler...
Initializing NUTS using jitter+adapt_diag...
Multiprocess sampling (4 chains in 4 jobs)
NUTS: [beta0, beta1]
100.00% [24000/24000 00:10<00:00 Sampling 4 chains, 0 divergences]
Sampling 4 chains for 1_000 tune and 5_000 draw iterations (4_000 + 20_000 draws total) took 11 seconds.
mean sd hdi_3% hdi_97%
beta0 -60.962 5.224 -70.699 -51.333
beta1 34.408 2.937 29.094 39.977

2. Vasoconstriction#

The data give the presence or absence (\(y_i = 1\) or \(0\)) of vasoconstriction in the skin of the fingers following inhalation of a certain volume of air (\(v_i\)) at a certain average rate (\(r_i\)). Total number of records is 39. The candidate models for analyzing the relationship are the usual logit, probit, cloglog, loglog, and cauchyit models.

Data is available for download in csv format here.

  1. Transform covariates \(v\) and \(r\) as:

\[ x_1 = \log(10 \times v), \quad x_2 = \log(10 \times r) \]

  1. Using a PPL, estimate posterior means for coefficients in the logit model. Use noninformative priors on all coefficients.

  2. For a subject with \(v = r = 1.5\), find the probability of vasoconstriction.

  3. Which of the five links: logit, probit, cloglog, loglog, and cauchyit, has the smallest deviance? An example for use of the five links is in Question 1, above. Uncomment and run one link at a time.

Solution

This is a standard logistic regression model, see code cell below.

Hide code cell content
import pymc as pm
import arviz as az
import pandas as pd
import numpy as np
from pymc.math import dot, invlogit, invprobit, log, sum, exp, arctan

#Read data and transform x's
data=pd.read_csv("../data/vasoconstriction.csv")
data['x1'] = np.log(10*data['v'])
data['x2'] = np.log(10*data['r'])

# Complementary log-log transformation
def invcloglog(x):
    return 1 - exp(-exp(x))

# Log-log transformation
def invloglog(x):
    return exp(-exp(-x))

# Cauchit transformation
def invcauchit(x):
    return 0.5 + (1 / np.pi) * arctan(x)

# New data point
new_data = np.array([[np.log(10*1.5),np.log(10*1.5)]])

with pm.Model() as m:
    #Data
    X_data = pm.Data("X_data", data[['x1','x2']])
    y_data = pm.Data("y_data", data['y'])

    #Coefficient priors
    alpha = pm.Normal("alpha", mu=0, sigma=1000)
    betas = pm.Normal("beta", mu=0, sigma=1000, shape=X_data.shape[1])

    #Bernoulli Regression
    p = invlogit(alpha + dot(X_data, betas))
    # p = invprobit(alpha + dot(X_data, betas))
    # p = invcloglog(alpha + dot(X_data, betas))
    # p = invloglog(alpha + dot(X_data, betas))
    # p = invcauchit(alpha + dot(X_data, betas))

    #Likelihood
    pm.Bernoulli("y", p=p, observed=y_data)

    #Deviance
    f = pm.Deterministic("f", p**y_data * (1-p)**(1-y_data))
    loglik = pm.Deterministic("loglik", log(f))
    pm.Deterministic("deviance", -2 * sum(loglik))

    #mean prediction
    p_new = pm.Deterministic('p_new',invlogit(alpha + dot(new_data, betas)))

    trace = pm.sample(5000)


az.summary(trace,var_names=['alpha','beta','deviance','p_new'])

Initializing NUTS using jitter+adapt_diag...
Multiprocess sampling (4 chains in 4 jobs)
NUTS: [alpha, beta]



Sampling 4 chains for 1_000 tune and 5_000 draw iterations (4_000 + 20_000 draws total) took 3 seconds.













      mean
      sd
      hdi_3%
      hdi_97%
      mcse_mean
      mcse_sd
      ess_bulk
      ess_tail
      r_hat






      alpha
      -4.417
      3.104
      -10.540
      1.201
      0.041
      0.032
      5745.0
      6215.0
      1.0




      beta[0]
      0.797
      0.736
      -0.538
      2.214
      0.009
      0.007
      6276.0
      7531.0
      1.0




      beta[1]
      0.974
      0.682
      -0.380
      2.190
      0.009
      0.007
      6434.0
      7094.0
      1.0




      deviance
      54.719
      2.586
      51.534
      59.465
      0.033
      0.033
      6476.0
      8247.0
      1.0




      p_new[0]
      0.590
      0.092
      0.420
      0.760
      0.001
      0.001
      14032.0
      14217.0
      1.0
















3. Caesarean Delivery: Categorical Response#


Table 1 contains grouped data on infection of mothers after a C-section, collected at the Clinical Center of the University of Munich. The response variable has three categories: Infection of type I, Infection of type II, and No infection. For each mother three covariates are collected:



\[\begin{align*}
\text{NOPLAN} &=
\begin{cases}
1 & \text{C-section was not planned} \\
0 & \text{Planned}
\end{cases} \\
\text{RISK} &=
\begin{cases}
1 & \text{Risk factors present} \\
0 & \text{No risk factors}
\end{cases} \\
\text{ANTIB} &=
\begin{cases}
1 & \text{Antibiotics given as prophylaxis} \\
0 & \text{No antibiotics given}
\end{cases}
\end{align*}\]




  1. Given the covariates, establish a multinomial model, where the outcome “No infection” serves as a baseline.
    2.




\[
\text{Table 1: Data on infections for 251 C-sections.}
\]



\[\begin{split}
\begin{array}{|l|lll|lll|}
\hline
& \rlap{\text{Planned}} & & & \rlap{\text{Unplanned}} & & \\
\text{Infection} & \text{I} & \text{II} & \text{No} & \text{I} & \text{II} & \text{No} \\
\hline
\textbf{Antibiotics} & & & & & & \\
\hspace{1em}\text{Risk factor} & 0 & 1 & 17 & 4 & 7 & 87 \\
\hspace{1em}\text{No risk factor} & 0 & 0 & 2 & 0 & 0 & 0 \\
\hline
\textbf{No Antibiotics} & & & & & & \\
\hspace{1em}\text{Risk factor} & 11 & 17 & 30 & 10 & 13 & 3 \\
\hspace{1em}\text{No risk factor} & 4 & 4 & 32 & 0 & 0 & 9 \\
\hline
\end{array}
\end{split}\]




  1. A new C-section delivery for a mother with covariates \((\text{NOPLAN}, \text{RISK}, \text{ANTIBIO}) = (1, 0, 0)\) is to be evaluated for risks of infection. What are the estimated probabilities of no infection, and type I and II infections?
    2.



Hint: Consult 17. Multinomial regression*.




Solution


See hidden code cell below!









Hide code cell content




import pymc as pm
import arviz as az
import numpy as np
import pytensor.tensor as pt

# y columns: infection I, infection II, No infection
y = np.array([[ 0,  1, 17],
              [ 0,  0,  2],
              [11, 17, 30],
              [ 4,  4, 32],
              [ 4,  7, 87],
              [ 0,  0,  0],
              [10, 13,  3],
              [ 0,  0, 9]])

# X columns: planned, risk, antibiotics
X = np.array([[0, 1, 1],
              [0, 0, 1],
              [0, 1, 0],
              [0, 0, 0],
              [1, 1, 1],
              [1, 0, 1],
              [1, 1, 0],
              [1, 0, 0]])

# add intercept to X
X_aug = np.concatenate((np.ones((X.shape[0], 1)), X), axis=1)
N, P = X_aug.shape
K = y.shape[1]

# new data point, with intercept
new_data = np.array([[1,1,0,0]])


with pm.Model() as m:
    y_data = pm.Data("y", y)
    X_data = pm.Data("X", X_aug)

    _beta = pm.Normal("_beta", mu=0, tau=0.1, shape=(P, K - 1))
    beta = pt.concatenate([_beta, pt.zeros((P, 1))], axis=1)

    eta = pm.math.dot(X_data, beta)
    p = pm.math.softmax(eta, axis=1)

    pm.Multinomial("likelihood", n=pm.math.sum(y_data,axis=1), p=p, observed=y_data, shape=X_data.shape)

    eta_new = pm.math.dot(new_data, beta)
    p_new = pm.Deterministic("p_new",pm.math.softmax(eta_new))

    trace = pm.sample(5000)

az.summary(trace,var_names="p_new")









Initializing NUTS using jitter+adapt_diag...
Multiprocess sampling (4 chains in 4 jobs)
NUTS: [_beta]







Sampling 4 chains for 1_000 tune and 5_000 draw iterations (4_000 + 20_000 draws total) took 3 seconds.













      mean
      sd
      hdi_3%
      hdi_97%
      mcse_mean
      mcse_sd
      ess_bulk
      ess_tail
      r_hat






      p_new[0, 0]
      0.168
      0.081
      0.034
      0.316
      0.001
      0.001
      18419.0
      14042.0
      1.0




      p_new[0, 1]
      0.151
      0.074
      0.031
      0.290
      0.001
      0.001
      17537.0
      13421.0
      1.0




      p_new[0, 2]
      0.681
      0.101
      0.487
      0.860
      0.001
      0.001
      16087.0
      14936.0
      1.0
















4. Magnesium Ammonium Phosphate and Chrysanthemums#


Walpole et al. (2007) provide data from a study on the effect of magnesium ammonium phosphate on the height of chrysanthemums, which was conducted at George Mason University in order to determine a possible optimum level of fertilization, based on the enhanced vertical growth response of the chrysanthemums. Forty chrysanthemum seedlings were assigned to 4 groups, each containing 10 plants. Each was planted in a similar pot containing a uniform growth medium. An increasing concentration of \(\text{MgNH}_4\text{PO}_4\), measured in grams per bushel, was added to each plant. The 4 groups of plants were grown under uniform conditions in a greenhouse for a period of 4 weeks. The treatments and the respective changes in heights, measured in centimeters, are given in the following table:


Data is available for download in csv format here.


Solve the problem as a Bayesian one-way ANOVA. Use STZ constraints on treatment effects.




  1. Do different concentrations of \(\text{MgNH}_4\text{PO}_4\) affect the average attained height of chrysanthemums? Look at the 95% credible sets for the differences between treatment effects.
    2.

  2. Find the 95% credible set for the contrast \(\mu_1 - \mu_2 - \mu_3 + \mu_4\).
    3.





Solution


Solution in hidden code cell below!









Hide code cell content




import pymc as pm
import arviz as az
import pandas as pd
import numpy as np

data = pd.read_csv("../data/chrysanthemums.csv")

with pm.Model() as m:
    mu0 = pm.Normal("mu_0", mu=0, tau=0.0001)
    tau = pm.Gamma("tau", 0.001, 0.001)

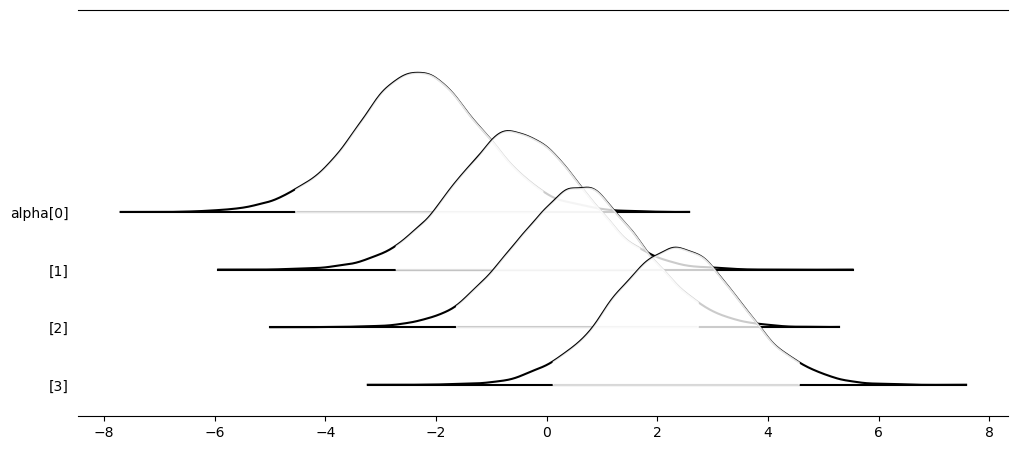

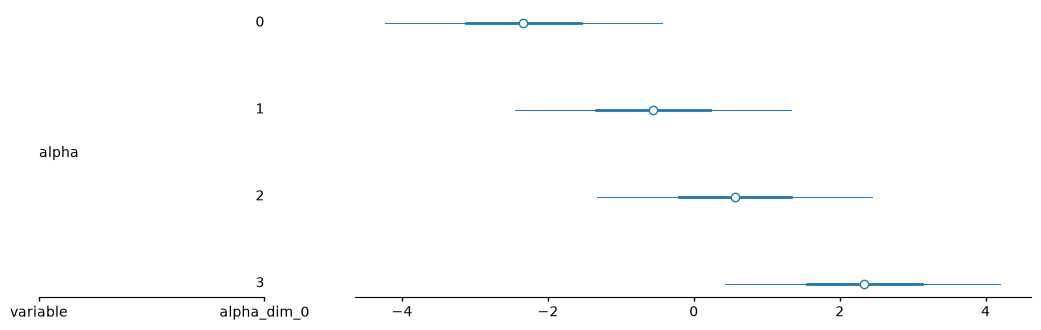

    alpha = pm.ZeroSumNormal("alpha", sigma=10, shape=4)

    mu_1 = mu0 + alpha[0]
    mu_2 = mu0 + alpha[1]
    mu_3 = mu0 + alpha[2]
    mu_4 = mu0 + alpha[3]

    pm.Normal("lik1", mu=mu_1, tau=tau, observed=data['50 g/bu'])
    pm.Normal("lik2", mu=mu_2, tau=tau, observed=data['100 g/bu'])
    pm.Normal("lik3", mu=mu_3, tau=tau, observed=data['200 g/bu'])
    pm.Normal("lik4", mu=mu_4, tau=tau, observed=data['400 g/bu'])

    onetwo = pm.Deterministic("α1-α2", alpha[0] - alpha[1])
    onethree = pm.Deterministic("α1-α3", alpha[0] - alpha[2])
    onefour = pm.Deterministic("α1-α4", alpha[0] - alpha[3])
    twothree = pm.Deterministic("α2-α3", alpha[1] - alpha[2])
    twofour = pm.Deterministic("α2-α4", alpha[1] - alpha[3])
    threefour = pm.Deterministic("α3-α4", alpha[2] - alpha[3])

    part2_contrast = pm.Deterministic(
        "α1-α2-α3+α4",alpha[0] - alpha[1] - alpha[2] + alpha[3])

    trace = pm.sample(5000)

az.summary(trace,hdi_prob=.95,var_names="α",filter_vars="like")









Initializing NUTS using jitter+adapt_diag...
Multiprocess sampling (4 chains in 4 jobs)
NUTS: [mu_0, tau, alpha]







Sampling 4 chains for 1_000 tune and 5_000 draw iterations (4_000 + 20_000 draws total) took 1 seconds.













      mean
      sd
      hdi_2.5%
      hdi_97.5%
      mcse_mean
      mcse_sd
      ess_bulk
      ess_tail
      r_hat






      α1-α2
      -1.763
      1.930
      -5.592
      2.051
      0.012
      0.015
      24598.0
      16179.0
      1.0




      α1-α2-α3+α4
      -0.008
      2.715
      -5.169
      5.509
      0.017
      0.019
      25733.0
      16460.0
      1.0




      α1-α3
      -2.898
      1.922
      -6.653
      0.882
      0.012
      0.013
      24965.0
      16269.0
      1.0




      α1-α4
      -4.654
      1.933
      -8.376
      -0.661
      0.013
      0.014
      23781.0
      15967.0
      1.0




      α2-α3
      -1.135
      1.919
      -4.990
      2.577
      0.012
      0.014
      25021.0
      15434.0
      1.0




      α2-α4
      -2.891
      1.923
      -6.658
      0.919
      0.012
      0.013
      25790.0
      16808.0
      1.0




      α3-α4
      -1.755
      1.916
      -5.398
      2.094
      0.012
      0.014
      25481.0
      16242.0
      1.0

















Hide code cell content




az.plot_forest(trace,var_names='alpha',
        kind="ridgeplot",combined=True,
        ridgeplot_truncate=False,
        ridgeplot_overlap=2,
        ridgeplot_alpha=0.8,
        colors="white")









array([<Axes: >], dtype=object)




../_images/b82729b6cffcabe3edda2e929535a0782bdaf540d8f918874fbc829a2738c504.png











5. Third-degree Burns#


The data for this exercise, discussed in Fan et al. (1995), refer to \(n = 435\) adults who were treated for third-degree burns by the University of Southern California General Hospital Burn Center. The patients were grouped according to the area of third-degree burns on the body. For each midpoint of the groupings “log(area +1),” the number of patients in the corresponding group who survived and the number who died from the burns was recorded:



\[\begin{split}
\begin{array}{|c|c|c|}
\hline
\text{Log(area+1)} & \text{Survived} & \text{Died} \\
\hline
1.35 & 13 & 0 \\
1.60 & 19 & 0 \\
1.75 & 67 & 2 \\
1.85 & 45 & 5 \\
1.95 & 71 & 8 \\
2.05 & 50 & 20 \\
2.15 & 35 & 31 \\
2.25 & 7 & 49 \\
2.35 & 1 & 12 \\
\hline
\end{array}
\end{split}\]


Data is available for download in csv format here.




  1. Fit the logistic regression on the probability of death due to third-degree burns with the covariate \(x = \log(\text{area} + 1)\). What is the deviance?
    2.

  2. Using your model, estimate the posterior probability of survival for a person for whom \(\log(\text{area} + 1)\) equals 2.
    3.

  3. Repeat (a) with probit and complementary log-log links. In terms of deviance, which model provides the best fit?
    4.





Solution


Two version of a solutions are provided using a (1) binomial or (2) Bernoulli likelihood.









Hide code cell content




# Binomial version of solution

import pymc as pm
import arviz as az
import pandas as pd
import numpy as np
from pymc.math import dot, invlogit, invprobit, log, sum, exp
from scipy.special import factorial

def binom_coeff(n,k):
    return factorial(n) / (factorial(k)*factorial(n-k))

#read data, and calculate n and binomial coefficienct for each row
data = pd.read_csv("../data/thirddegreeburns.csv")
data['n'] = data['Survived'] + data['Died']
data['binom_coeff'] = binom_coeff(data['n'],data['Survived'])

# Log-log transformation
def invloglog(x):
    return exp(-exp(-x))

with pm.Model() as m:
    #Data
    X_data = pm.Data("X_data", data['Log(area+1)'])
    y_data = pm.Data("y_data", data['Survived'])
    n_data = pm.Data("n_data", data['n'])
    binom_coef_data = pm.Data("binom_coef_data", data['binom_coeff'])

    #Coefficient priors
    alpha = pm.Normal("alpha", mu=0, sigma=1000)
    beta = pm.Normal("beta", mu=0, sigma=1000)

    #Regression
    # p = invlogit(alpha + dot(X_data, beta))
    # p = invprobit(alpha + dot(X_data, beta))
    p = invloglog(alpha + dot(X_data, beta))

    #Likelihood
    pm.Binomial("y", p=p, n=n_data, observed=y_data)

    #Deviance
    f = pm.Deterministic("f",binom_coef_data * (p**y_data * (1-p)**(n_data-y_data)))
    loglik = pm.Deterministic("loglik", log(f))
    pm.Deterministic("deviance", -2 * sum(loglik))

    #mean prediction
    p_new = pm.Deterministic('p_new',invlogit(alpha + 2 * beta))

    trace = pm.sample(5000)

    # another way to find loglik, to check formula above
    # ll = pm.compute_log_likelihood(trace)

az.summary(trace, var_names=['alpha','beta','deviance','p_new'])









Initializing NUTS using jitter+adapt_diag...
Multiprocess sampling (4 chains in 4 jobs)
NUTS: [alpha, beta]







Sampling 4 chains for 1_000 tune and 5_000 draw iterations (4_000 + 20_000 draws total) took 3 seconds.













      mean
      sd
      hdi_3%
      hdi_97%
      mcse_mean
      mcse_sd
      ess_bulk
      ess_tail
      r_hat






      alpha
      18.187
      1.607
      15.307
      21.329
      0.029
      0.022
      3096.0
      3428.0
      1.0




      beta
      -8.313
      0.749
      -9.749
      -6.939
      0.013
      0.010
      3091.0
      3428.0
      1.0




      deviance
      32.181
      2.012
      30.167
      35.899
      0.030
      0.040
      5505.0
      5242.0
      1.0




      p_new
      0.826
      0.020
      0.787
      0.863
      0.000
      0.000
      4874.0
      6137.0
      1.0

















Hide code cell content




# Binomial version of solution

# First, expand the data to a long format,
# where each row corresponds to a single observation (either survived or died).

data_long = []
for i in range(len(data)):
    for j in range(int(data.iloc[i]['Survived'])):
        data_long.append([data.iloc[i]['Log(area+1)'],1])
    for j in range(int(data.iloc[i]['Died'])):
        data_long.append([data.iloc[i]['Log(area+1)'],0])

data_long = pd.DataFrame(data_long)
data_long.rename(columns={0:"Log(area+1)",1:"Survived"},inplace=True)

with pm.Model() as m:
    #Data
    X_data = pm.Data("X_data", data_long['Log(area+1)'])
    y_data = pm.Data("y_data", data_long['Survived'])

    #Coefficient priors
    alpha = pm.Normal("alpha", mu=0, sigma=1000)
    beta = pm.Normal("beta", mu=0, sigma=1000)

    #Bernoulli Regression
    # p = invlogit(alpha + dot(X_data, beta))
    # p = invprobit(alpha + dot(X_data, beta))
    p = invloglog(alpha + dot(X_data, beta))

    #Likelihood
    pm.Bernoulli("y", p=p, observed=y_data)

    #Deviance
    f = pm.Deterministic("f", p**y_data * (1-p)**(1-y_data))
    loglik = pm.Deterministic("loglik", log(f))
    pm.Deterministic("deviance", -2 * sum(loglik))

    #mean prediction
    p_new = pm.Deterministic('p_new',invlogit(alpha + 2 * beta))

    trace = pm.sample(5000)

az.summary(trace,var_names = ['alpha','beta','deviance'])









Initializing NUTS using jitter+adapt_diag...
Multiprocess sampling (4 chains in 4 jobs)
NUTS: [alpha, beta]







Sampling 4 chains for 1_000 tune and 5_000 draw iterations (4_000 + 20_000 draws total) took 4 seconds.













      mean
      sd
      hdi_3%
      hdi_97%
      mcse_mean
      mcse_sd
      ess_bulk
      ess_tail
      r_hat






      alpha
      18.145
      1.622
      15.017
      21.159
      0.030
      0.022
      2986.0
      3249.0
      1.0




      beta
      -8.293
      0.757
      -9.731
      -6.855
      0.014
      0.010
      2987.0
      3271.0
      1.0




      deviance
      334.323
      2.056
      332.302
      338.083
      0.032
      0.041
      5194.0
      5175.0
      1.0
















6. Shocks!#


An experiment was conducted to assess the effect of small electrical currents on farm animals, with the eventual goal of understanding the effects of high-voltage powerlines on livestock. The experiment was carried out with seven cows, and six shock intensities, 0, 1, 2, 3, 4, and 5 milliamps (shocks on the order of 15 milliamps are painful for many humans). Each cow was given 30 shocks, five at each intensity, in random order. The entire experiment was then repeated, so each cow received a total of 60 shocks. For each shock the response, mouth movement, was either present or absent. The data as quoted give the total number of responses, out of 70 trials, at each shock level. We ignore cow differences and differences between blocks (experiments).



\[\begin{split}
\begin{array}{|c|c|c|c|}
\hline
\text{Current (ma)} & y & \text n & p \\
\hline
0 & 0 & 70 & 0.000 \\
1 & 9 & 70 & 0.129 \\
2 & 21 & 70 & 0.300 \\
3 & 47 & 70 & 0.671 \\
4 & 60 & 70 & 0.857 \\
5 & 63 & 70 & 0.900 \\
\hline
\end{array}
\end{split}\]


Here, \(y\) is the number of responses, \(n\) is the number of trials, and \(p\) is the proportion of responses.


Data is available for download in csv format here.


As in the exercise on beetles (bliss data), model \(y\) as a function of \(x\) via binary regression with 5 different links and propose the link that minimizes the deviance.




Solution


Expand the hidden code cell below!









Hide code cell content




import pymc as pm
import arviz as az
import pandas as pd
import numpy as np
from pymc.math import dot, invlogit, invprobit, log, sum, exp, arctan
from scipy.special import factorial

data = pd.read_csv("../data/shocks.csv")


def binom_coeff(n,k):
    return factorial(n) / (factorial(k)*factorial(n-k))

#read data, and calculate n and binomial coefficienct for each row
data['binom_coeff'] = binom_coeff(data['Number of Trials $n$'],data['Number of Responses $y$'])

# Complementary log-log transformation
def invcloglog(x):
    return 1 - exp(-exp(x))

# Log-log transformation
def invloglog(x):
    return exp(-exp(-x))

# Cauchit transformation
def invcauchit(x):
    return 0.5 + (1 / np.pi) * arctan(x)


with pm.Model() as m:
    #Data
    X_data = pm.Data("X_data", data['Current (milliamps)'])
    y_data = pm.Data("y_data", data['Number of Responses $y$'])
    n_data = pm.Data("n_data", data['Number of Trials $n$'])
    binom_coef_data = pm.Data("binom_coef_data", data['binom_coeff'])

    #Coefficient priors
    alpha = pm.Normal("alpha", mu=0, sigma=1000)
    beta = pm.Normal("beta", mu=0, sigma=1000)

    #Regression
    # p = invlogit(alpha + dot(X_data, beta))
    # p = invprobit(alpha + dot(X_data, beta))
    # p = invcloglog(alpha + dot(X_data, beta))
    # p = invloglog(alpha + dot(X_data, beta))
    p = invcauchit(alpha + dot(X_data, beta))

    #Likelihood
    pm.Binomial("y", p=p, n=n_data, observed=y_data)

    #Deviance
    f = pm.Deterministic("f",binom_coef_data * (p**y_data * (1-p)**(n_data-y_data)))
    loglik = pm.Deterministic("loglik", log(f))
    pm.Deterministic("deviance", -2 * sum(loglik))

    trace = pm.sample(5000)

    # another way to find loglik, to check formula above
    # ll = pm.compute_log_likelihood(trace)

az.summary(trace, var_names=['alpha','beta','deviance'])









Initializing NUTS using jitter+adapt_diag...
Multiprocess sampling (4 chains in 4 jobs)
NUTS: [alpha, beta]







Sampling 4 chains for 1_000 tune and 5_000 draw iterations (4_000 + 20_000 draws total) took 1 seconds.













      mean
      sd
      hdi_3%
      hdi_97%
      mcse_mean
      mcse_sd
      ess_bulk
      ess_tail
      r_hat






      alpha
      -4.346
      0.686
      -5.583
      -3.079
      0.012
      0.009
      3483.0
      3945.0
      1.0




      beta
      1.676
      0.251
      1.225
      2.144
      0.004
      0.003
      3472.0
      3730.0
      1.0




      deviance
      34.877
      2.095
      32.798
      38.519
      0.031
      0.044
      5445.0
      6342.0
      1.0
















7. Binary Regression and IOP#


Laser refractive surgery often decreases Intraocular Pressure (IOP) and may lead to hypotony (clinically significant low IOP that may lead to corneal decompensation, accelerated cataract formation, maculopathy, and discomfort). An investigator wished to determine whether the post-operative IOP in patients after laser refractive surgery was related to the residual thickness of the cornea.


In a sample of 140 patients who had undergone laser surgery, post-operative IOP and the thickness of the cornea were measured. The dataset is provided in the startup file iop2.odc which consists of two columns:




  • Indicator of low IOP (IOP < 10)
    •

  • Central corneal thickness (in micrometers)
    •





  1. Fit the logistic regression with cornea thickness as the predictor of incidence of low IOP.
    2.

  2. For a person who had a refractive surgery with residual thickness of cornea of 420 micrometers, what is the risk of a low IOP.
    3.

  3. Compare deviances for two links: logit (as in (a)), and probit. Which link provides better fit?
    4.



Data is available for download in csv format here.




Solution


Check out solution in hidden code cell below!









Hide code cell content




import pymc as pm
import arviz as az
import pandas as pd
import numpy as np
from pymc.math import dot, invlogit, invprobit, log, sum

def standardize(X_df: pd.DataFrame) -> pd.DataFrame:
    """
    Standardize input variables by 2 std dev.

    See https://stat.columbia.edu/~gelman/research/published/standardizing7.pdf.
    """
    # find and store means and std, then standardize
    means = X_df.mean(axis=0)
    stdevs = X_df.std(axis=0)
    X_standardized = (X_df - means) / (2 * stdevs)

    return X_standardized

data = pd.read_csv("../data/iop.csv")

#default NUTS ssampler diverges unless data is standardized. Other samplers work fine with non-standardized data
X_std = standardize(data['Thickness'])

with pm.Model() as m:
    #Data
    # X_data = pm.Data("X_data", X_std)
    X_data = pm.Data("X_data", data['Thickness'])
    y_data = pm.Data("y_data", data['LowIOP'])

    #Coefficient priors
    alpha = pm.Normal("alpha", mu=0, sigma=1000)
    beta = pm.Normal("beta", mu=0, sigma=1000)

    #Bernoulli Regression
    # p = invlogit(alpha + dot(X_data, beta))
    p = invprobit(alpha + dot(X_data, beta))

    #Likelihood
    pm.Bernoulli("y", p=p, observed=y_data)

    #Deviance
    f = pm.Deterministic("f", p**y_data * (1-p)**(1-y_data))
    loglik = pm.Deterministic("loglik", log(f))
    pm.Deterministic("deviance", -2 * sum(loglik))

    #mean prediction
    p_new = pm.Deterministic('p_new',invlogit(alpha + 420 * beta))


    # trace = pm.sample(5000)
    # trace = pm.sample(5000,nuts_sampler="numpyro")
    # trace = pm.sample(5000,nuts_sampler="blackjax")
    trace = pm.sample(5000,nuts_sampler="nutpie")

az.summary(trace,var_names = ['alpha','beta','deviance'])
















Sampler Progress


Total Chains: 4


Active Chains: 0



        Finished Chains:
        4



Sampling for now



        Estimated Time to Completion:
        now










                Progress
                Draws
                Divergences
                Step Size
                Gradients/Draw











                    6000
                    0
                    0.27
                    23









                    6000
                    0
                    0.26
                    43









                    6000
                    0
                    0.26
                    31









                    6000
                    0
                    0.28
                    3


















      mean
      sd
      hdi_3%
      hdi_97%
      mcse_mean
      mcse_sd
      ess_bulk
      ess_tail
      r_hat






      alpha
      7.409
      1.831
      4.024
      10.885
      0.035
      0.024
      2780.0
      3368.0
      1.0




      beta
      -0.017
      0.004
      -0.024
      -0.010
      0.000
      0.000
      2786.0
      3344.0
      1.0




      deviance
      134.042
      1.976
      132.053
      137.704
      0.030
      0.036
      5297.0
      5275.0
      1.0
















8. Negative Binomial as a Gamma Mixture of Poissons#


Implement this model, which recreates a negative binomial regression as a gamma mixture of Poissons.



\[\begin{align*}
  y_i | \lambda_i &\sim \text{Poisson}(\lambda_i) \\
  \lambda_i | \mu_i, \alpha &\sim \text{Gamma}(\alpha, \frac{\alpha}{\mu_i}) \\
  \mu_i &= \exp(\beta_0 + \beta_1 x_i) \\
  \beta_0 &\sim \mathcal{N}(0, 10^4) \\
  \beta_1 &\sim \mathcal{N}(0, 10^4) \\
  \alpha &\sim \text{Uniform}(0.01, 100)
\end{align*}\]


Here’s the data:


x = np.array([12.2, 14.2, 9.8, 16.3, 20.1, 18.4, 22.7, 20.2, 21.4, 33.0, 30.5])
y = np.array([5, 6, 6, 7, 6, 8, 11, 10, 18, 20, 22])







Solution


See hidden code cell below!









Hide code cell content




import pymc as pm
import arviz as az
import pandas as pd
import numpy as np

x = np.array([12.2, 14.2, 9.8, 16.3, 20.1, 18.4, 22.7, 20.2, 21.4, 33.0, 30.5])
y = np.array([5, 6, 6, 7, 6, 8, 11, 10, 18, 20, 22])

with pm.Model() as m:
    X_data = pm.Data("X_data", x)
    y_data = pm.Data("y_data", y)

    β0 = pm.Normal("β0", mu=0, tau=0.0001)
    β1 = pm.Normal("β1", mu=0, tau=0.0001)
    α = pm.Uniform("α",0.01,100)

    μ = pm.math.exp(β0 + β1 * X_data)

    λ = pm.Gamma("λ",α,α/μ)

    likelihood = pm.Poisson("likelihood", mu=λ, observed=y_data, shape=y_data.shape[0])

    trace = pm.sample(5000)
    # trace = pm.sample(5000,nuts_sampler="nutpie")

az.summary(trace,var_names=["α","β0","β1"])









Initializing NUTS using jitter+adapt_diag...
Multiprocess sampling (4 chains in 4 jobs)
NUTS: [β0, β1, α, λ]







Sampling 4 chains for 1_000 tune and 5_000 draw iterations (4_000 + 20_000 draws total) took 6 seconds.













      mean
      sd
      hdi_3%
      hdi_97%
      mcse_mean
      mcse_sd
      ess_bulk
      ess_tail
      r_hat






      α
      58.093
      25.358
      17.059
      99.934
      0.356
      0.139
      4856.0
      7121.0
      1.0




      β0
      0.960
      0.350
      0.313
      1.624
      0.005
      0.003
      4693.0
      7552.0
      1.0




      β1
      0.066
      0.015
      0.038
      0.094
      0.000
      0.000
      5136.0
      8216.0
      1.0
















9. Sex of Diamond-backed Terrapins and Incubation Temperature#


Temperature-dependent sex determination, observed in some reptiles and fish, is a type of environmental sex determination in which the temperatures experienced during embryonic development determine the sex of the offspring. Data on the relationship between the ratio of male/female diamond-backed terrapins (Malaclemys terrapin) and incubation temperature are reported by Burke and Calichio [2014].




  1. Develop a binary regression model for both logit and cloglog links.
    2.

  2. Which link gives smaller deviance?
    3.

  3. Predict the probability of a female terrapin for a temperature of 29°C, using both models.
    4.



Data is available for download in csv format here.




Solution


Solution code in hidden cell below!









Hide code cell content




import pymc as pm
import arviz as az
import pandas as pd
import numpy as np
from pymc.math import dot, invlogit, log, sum, exp
from scipy.special import factorial

def binom_coeff(n,k):
    return factorial(n) / (factorial(k)*factorial(n-k))

data = pd.read_csv("../data/terrapins.csv")
data["binom_coeff"] = binom_coeff(data["Total"],data["Female"])

# Complementary log-log transformation
def invcloglog(x):
    return 1 - exp(-exp(x))

with pm.Model() as m:
    #Data
    X_data = pm.Data("X_data", data['Temp'])
    y_data = pm.Data("y_data", data['Female'])
    n_data = pm.Data("n_data", data['Total'])
    binom_coef_data = pm.Data("binom_coef_data", data['binom_coeff'])

    #Coefficient priors
    alpha = pm.Normal("alpha", mu=0, tau=.001)
    beta = pm.Normal("beta", mu=0, tau=.001)

    #Regression
    p = invlogit(alpha + dot(X_data, beta))
    # p = invcloglog(alpha + dot(X_data, beta))

    #Likelihood
    pm.Binomial("y", p=p, n=n_data, observed=y_data)

    #Deviance
    f = pm.Deterministic("f",binom_coef_data * (p**y_data * (1-p)**(n_data-y_data)))
    loglik = pm.Deterministic("loglik", log(f))
    pm.Deterministic("deviance", -2 * sum(loglik))

    #mean prediction
    p_new = pm.Deterministic('p_new',invlogit(alpha + 29 * beta))

    trace = pm.sample(5000)
    # trace = pm.sample(5000, nuts_sampler="nutpie")

    # another way to find loglik, to check formula above
    # ll = pm.compute_log_likelihood(trace)

az.summary(trace, var_names=['alpha','beta','deviance','p_new'])









Initializing NUTS using jitter+adapt_diag...
Multiprocess sampling (4 chains in 4 jobs)
NUTS: [alpha, beta]







Sampling 4 chains for 1_000 tune and 5_000 draw iterations (4_000 + 20_000 draws total) took 4 seconds.













      mean
      sd
      hdi_3%
      hdi_97%
      mcse_mean
      mcse_sd
      ess_bulk
      ess_tail
      r_hat






      alpha
      -32.293
      4.683
      -41.570
      -23.942
      0.090
      0.069
      2705.0
      2728.0
      1.0




      beta
      1.148
      0.167
      0.834
      1.460
      0.003
      0.002
      2704.0
      2714.0
      1.0




      deviance
      19.919
      2.002
      17.909
      23.565
      0.033
      0.048
      4481.0
      5398.0
      1.0




      p_new
      0.727
      0.052
      0.630
      0.825
      0.001
      0.000
      6433.0
      9649.0
      1.0
